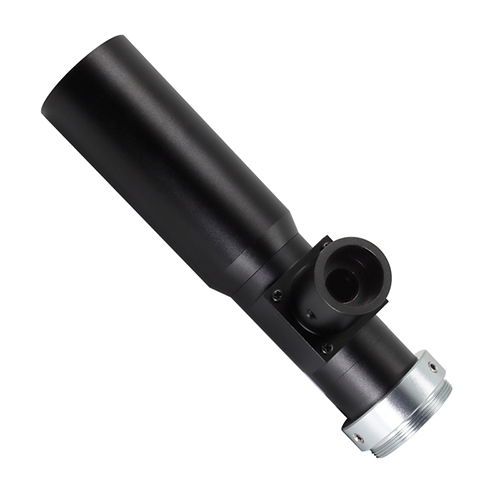

ZLKC high-resolution coaxial Telecentric lens HM10X110CT 1x 110mm: 2/3″ C-Mount 1x coaxial; Megapixels high-resolution telecentric lens; supporting working distance 110mm; Wide magnification ranges from 0.5X to 6X; object telecentric design; Low distortion,Excellent image uniformity; large aperature for high brightness; Metal structure，Compact design; widely applied in instant measurement

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		HM10X110CT
Max Image Size		2/3-inch
Magnification		1X
WD (mm)		110
Working F/#		11
Object NA(mm)		0.045
Depth of field(mm)		0.9
Distortion		<0.1%
Resolution		7.4μ
FOV（WxH）(mm)	2/3"(8.8x6.6)	8.6x6.6
	1/1.8"(7.13x5.37)	6.4x4.8
	1/2"(6.4x4.8)	4.8x3.6
(° max)		<0.1°
Mount		C-Mount
TTL		143mm

Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Magnification：1X
◆ WD：110mm
◆ Features：Coaxial Telecentric Lens C-Mount 1x instant measurement lens

Model
HM10X110CT

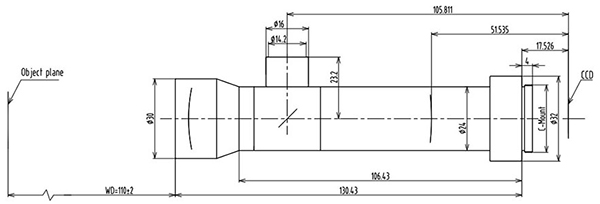

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.
