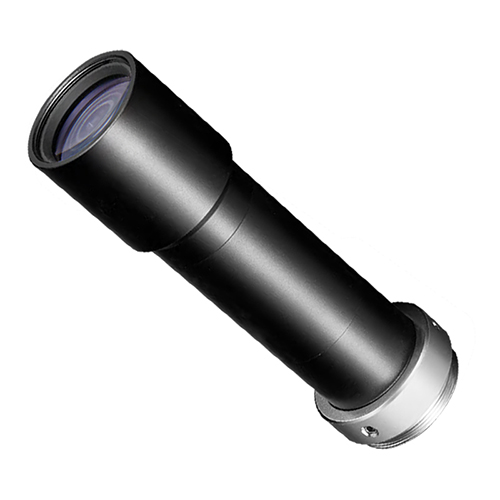

ZLKC megapixel Telecentric lens FM018X150T 0.18x 150mm: 2/3″ C-Mount 0.18x; Megapixels high-resolution telecentric lens; supporting working distance 150mm; Wide magnification ranges from 0.5X to 6X; object telecentric design; Low distortion,Excellent image uniformity; large aperature for high brightness; Metal structure，Compact design; widely applied in instant measurement

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		FM018X150T
Max Image Size		2/3-inch
Magnification		0.18X
WD (mm)		150
Working F/#		12.6
Object NA(mm)		0.00713
Depth of field(mm)		31.1
Distortion		<0.6%
Resolution		47.1μ
FOV（WxH）(mm)	2/3"(8.8×6.6)	48.9x36.7
	1/1.8"(7.13×5.37)	39.6x29.8
	1/2"(6.4×4.8)	35.6x26.7
(° max)		<0.1°
Mount		C-Mount
TTL		77.2mm

Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Magnification：0.18X
◆ WD：150mm
◆ Features：High Mag Telecentric Lens C-Mount 0.18x instant measurement lens

Model
FM018X150T

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.
