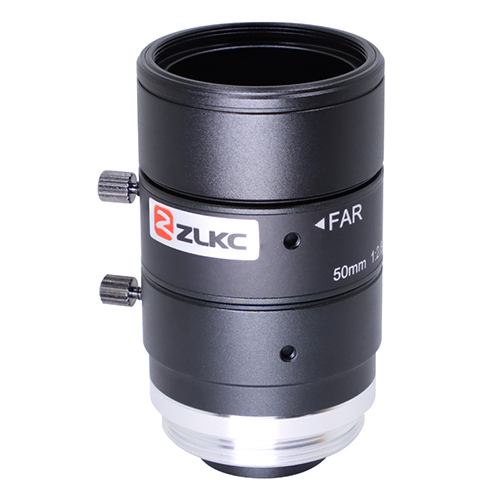

10MP Industrial Lens 50mm LM5028MP10 Manual Iris camera Lens 2/3-inch C-Mount

FH至尊

10MP Industrial Lens 50mm LM5028MP10 Manual Iris camera Lens 2/3-inch C-Mount: 2/3″C-Mount 50mm 10MP; Ultra-low object distance; Can suppress stray light; Low distortion,High resolution; Locking set screws for focus and Iris

Tel:+86 020-38312466

Specifications Dimension PDF download Other

10MP Low distance lens 50mm 2/3”C Mount
Model		LM5028MP10
Image circle		2/3-inch (Φ11.4)
Focal length		50mm±5%
F?No.		F2.8-16
M.O.D(m)		0.3-Inf.
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View	2/3"Type	12.8°×10.2°×7.7°
	1/1.8"Type	9.7°×8.0°×5.4°
	1/2"Type	8.7°×7.0°×5.2°
Distortion	At 0.6m	-0.02%
Back?focal?length		11.8mm
Flange Back Focal Length		17.526mm
Mount		C-Mount
Relative Illumination		70%
CRA		3.9°
Dimension		Ф29.4x43.9mm
Weight		72.4g
Lens structure		5groups，7elements
Filter Thread		M25.5*P0.5
Working Temperature		-20?C ～ +60?C

Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Focal length：f=50mm
◆ F No.：F2.8-16
◆ Features：10MP Industrial Lens 50mm Manual Iris C Mount Lens

Model
LM5028MP10

Dimension
FH至尊(中国)有限公司官网

Industries Application
Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on
