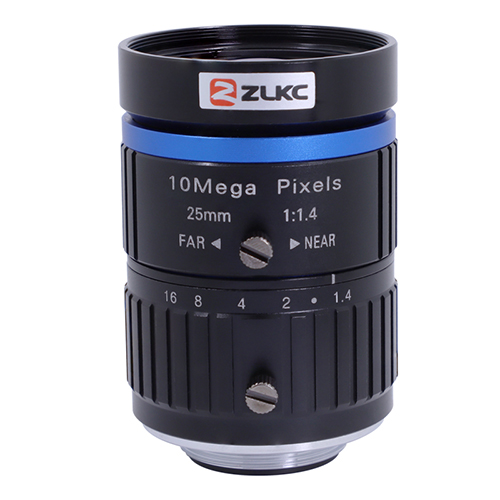

      1-inch FA Lens HM2514MPC 25mm 10MP C-Mount
      1″ C Mount f=25mm F1.4
      High resolution ,excellent image uniformity
      high contrast,Can suppress stray light
      Low distortion,High measurement accuracy
      Locking set screws for focus and Iris
      compact appearance for device integration

      Model

      HM2514MPC

      Image Size

      1-inch

      Focal length

      25mm

      F No.

      F1.4-C

      M.O.D(m)

      0.25m-Inf.

      Operation

      Iris

      Manual

      Focus

      Manual

      Horizontal Angle of View

      1" Type

      29.0°x21.9°

      2/3"Type

      20.1°x15.2°

      1/1.8"Type

      16.5°x12.4°

      Mount

      C-Mount

      TV Distortion

      -0.25%

      Dimension

      Ф40x56mm

      Weight

      160.0g

      Filter

      M37 P=0.75mm

      Remark

      10MP HD LENS

      Product Features
      ◆ Brand：ZLKC
      ◆ Image Size：1″ C-mount
      ◆ Focal length：f=25mm
      ◆ F No.：F1.4
      ◆ Features：1-inch 25mm 10MP Manual Iris Lens,? F1.4 Fixed focus Lens C Mount HD Lens

      Model
      HM2514MPC

      Dimension
      FH至尊(中国)有限公司官网

      Industries Application
      These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras?and so on
      FH至尊(中国)有限公司官网HM2514MPC Specifications
