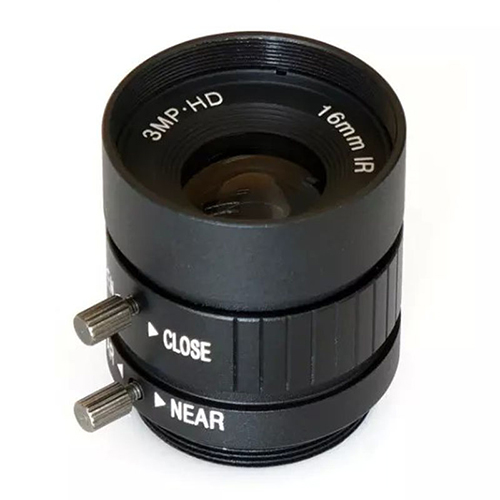

      CS-Mount Lens VM1612MPC 16mm Manual Iris Lens 1/1.8-inch 3MP
      1/1.8″ CS 16mm
      Can suppress stray light
      Locking set screws for focus and Iris
      Metal structure，compact appearance
      Used in CS-Mount Camera.

      Model

      VM1612MPC

      Image Size

      1/1.8-inch

      Focal length

      16mm

      F?No.

      F1.6

      M.O.D(m)

      0.25m-Inf.

      Operation

      Iris

      Manual

      Focus

      Manual

      Horizontal Angle of View

      1/2" Type

      21.8°x16.4°

      1/1.8"Type

      24.7°x18.6°

      Distortion

      1/1.8"Type

      -0.8%

      Filter

      M27 P=0.5mm

      Mount

      CS-Mount

      Dimension

      Ф30x29mm

      Weight

      54.0g

      Remark

      3MP LENS

      Product Features
      ◆ Brand：ZLKC
      ◆ Image Size：1/1.8″ C-mount
      ◆ Focal length：f=16mm
      ◆ F No.：F1.6-C
      ◆ Features：1/1.8-inch 16mm 3MP Manual Iris Lens CS Mount HD Lens

      Model
      VM1612MPC

      Dimension
      FH至尊(中国)有限公司官网

      ※ Industries Application
      These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras?and so on
      FH至尊(中国)有限公司官网VM1612MPC Specifications
