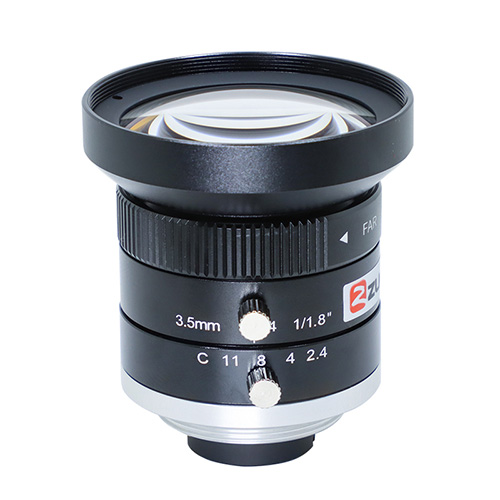

2MP 3.5mm FA Lens C Mount

Model

HM035MP2

Image Size

1/1.8-inch

Focal length

3.5mm

F?No.

F2.4-C

M.O.D(m)

0.1-Inf.

Operation

Iris

Manual

Focus

Manual

Angle of View

(D×H×V)

1/1.8"

104.5°×94.3°×78.0°

1/2"

99.6°×87.9°×71.1°

1/3"

84.2°×71.1°×55.6°

Distortion

-1.23%

BFL

8.57mm

Mount

C-Mount

Object Dimension

1/1.8"

350.5mm×261.3mm(WD=150mm)

1/2"

312mm×230.5mm(WD=150mm)

1/3"

230.5mm×170mm(WD=150mm)

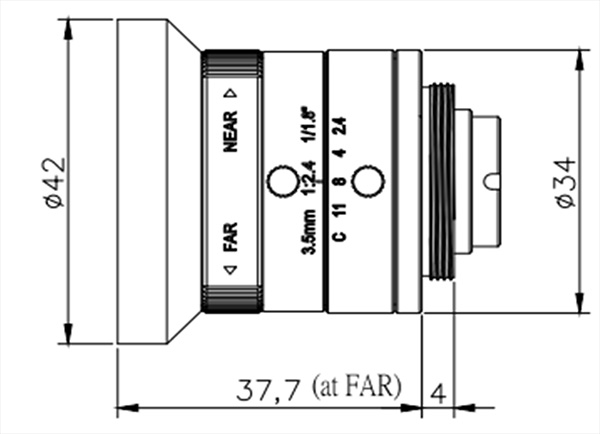

Dimension

Φ42×37.7mm

Weight

130g

Horizontal Resolution

100lp/mm

Filter Thread

M40.5*0.5

Working Temperature

-20?C ～ +70?C
