1.1英寸千万像素25mm低畸变微距镜头C Mount

型号Model

TM2528MP12

像机尺寸Image Size

1.1-inch

焦距Focal length

25mm

光圈范围F?No.

F2.8-16

畸变Distortion

<0.07%

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

接口Mount

C-Mount

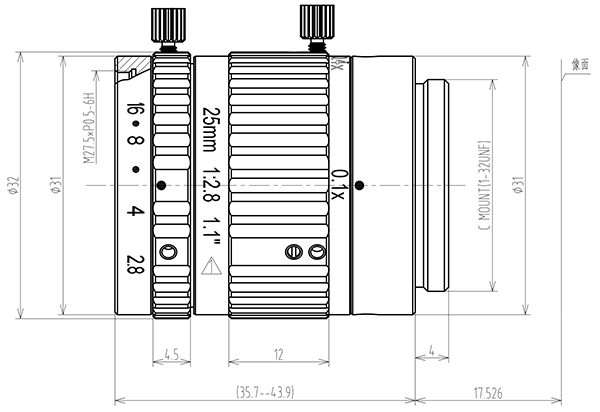

外形尺寸Dimension

Φ31×43.9mm

滤镜尺寸Filter

M27.5x 0.5

工作温度Working Temperature

-20?C ～ +60?C

物距Working Distance(mm)

倍率Optical Magnification

视野1.1"（Φ17.6）Field of View

视野1"（Φ16）Field of View

视野2/3"（Φ11）Field of View

H

V

H

V

H

V

260.4

-0.1X

140

105

128

96

88

66

173.4

-0.15X

93

70

85

64

58.6

44

125.4

-0.2X

70

52.8

64

48

44

33

103.4

-0.25X

56

42

51

38

35

26

85.4

-0.3X

47

35

426

32

29

22

74.4

-0.35X

40

30

35.6

27.4

25

18.8

65

-0.4X

35

26

32

24

22

16.5
